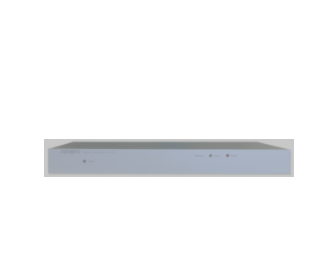

曼博格Meinberg E1／T1电信信号分配器单元:SDU/EFB/MP

曼博格Meinberg E1／T1电信信号分配器单元:SDU/EFB/MP

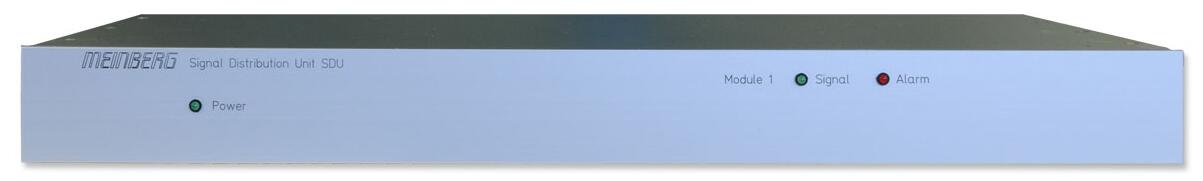

SDU/EFB/MP: Signal Distributor Unit for E1 / T1 Telecom Signals



The SDU/EFB signal distributor unit is a signal diplexer that allows to connect up to 24 devices to one E1/T1 sync output. This is a very compact and cost effective way to increase the number of E1/T1 ports available for synchronizing telecom switches and multiplexer as well as other devices that require a 1.544 or 2.048 MBit/s reference.


0.00
0.00

商品描述

SDU/EFB/MP: Signal Distributor Unit for E1 / T1 Telecom Signals



The SDU/EFB signal distributor unit is a signal diplexer that allows to connect up to 24 devices to one E1/T1 sync output. This is a very compact and cost effective way to increase the number of E1/T1 ports available for synchronizing telecom switches and multiplexer as well as other devices that require a 1.544 or 2.048 MBit/s reference.


Key Features

Years of warranty: 3 RoHS compliant
  • 19 Inch Metal desktop case
  • 100-240 V AC / DC
    or 19-72 V DC Power Supply
  • 2.048Mbit/s E1-Mode unbalanced
    2.048Mbit/s E1-Mode balanced


Characteristics

Available Output Signals 2.048Mbit/s
E1 (2.048 Mbit/s), 120 ohm, balanced, via RJ45 connectors

2.048Mbit/s
E1 (2.048 Mbit/s), 75 ohm, balanced, via BNC female connectors
19''-Abmessungen' (W x H x D) 443 mm x 45 mm x 285 mm
Power supply 100-240 V DC / 100-240 V AC (50/60 Hz)
or 19-72 V. DC
Power consumption 28W
Form Factor 19'' aluminium case (1U) Schroff Multipac
Protection IP20
Ambient temperature 0 ... 50°C / 32 ... 122°F
Humidity Max. 85%
Warranty Three-Year Warranty
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.


Characteristics

Frequency range Antenna:
Receive frequency: 1575.42 MHz

Converter:
Local oscillator to converter frequency:: 10 MHz
First IF frequency: 35,4 MHz
Physical dimensions Dimensions of the GPS Antenna - see datasheet.
Antenna connector type-N connector
Bandwith 9 MHz
Power supply 12V ... 18V, @ 100mA (provided via antenna cable)
Form Factor ABS plastic case for
outdoor installation (IP66)
Ambient temperature -40 ... 65°C
Warranty Three-Year Warranty
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
