Industrial Firewall / Router with Gigabit Switch

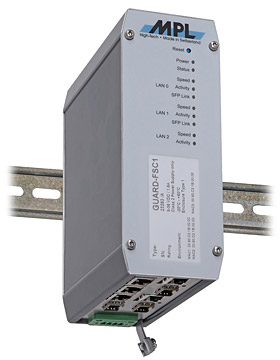

GUARD-FS
With the GUARD-FS, MPL has integrated several systems into one housing, a Firewall, a VPN-Gateway, a Router, as well as an Ethernet Switch with your choice of copper and/or fiber ports. You can imagine the broad use of the GUARD-FS with this functionality.
Today, everything is getting automated. Therefore security in this automated world is becoming more and more important. The key differences of industrial applications are that they require a long-term availability due to the life cycle management of the investments.
GUARD-FS Highlights
The system can be operated from -20°C to +60°C (optional -40°C to +85°C), without the need of a fan or case openings. The capability to offer copper as well as SFP ports for various fiber optical solutions make the product universal. This versatility is supported by the availability of a software development kit, the powerful 1.2 GHz ARM processor, and the 512 Mbyte built in flash that allows for customer specific extensions.
- Wide Input voltage range (8 - 36VDC)
- Low power consumption (fanless)
- All connectors on one side
- Customized housing
- Firewall/Router with 3x Gbit (copper or SFP)
- 5-port switch (copper and/or fiber)
- Switch as managed or unmanaged version
These features make the GUARD-FS to the ideal solution for industrial, transportation and defense applications where security, quality, reliability, low power consumption, and long-term availability are key. Just to name a few, the GUARD-FS can be used for applications such as remote monitoring & maintenance, secure communication in automation, etc..
Firewall/Router used in sensitive environment
![[GUARD-FS]](https://www.mpl.ch/images/industrialE/guard-fs-p3.jpg)
GUARD-FS used as frontend in maintenance monitoring system
Technical Features
| Board Key Data | ||
|---|---|---|
| Processor | RISC SoC 1.2GHz | Low Power CPU |
| Memory / Firmware | 512MByte DDR2 / 512MByte NAND Flash | Soldered OnBoard |
| Interfaces | ||
| Firewall ports |
2 x RJ45 ports, auto negotiation, auto MDI MDIX 2 x SFP Slot |
Either 10BaseT /100BaseTX /1000BaseTX or 100Base-FX or 1000Base-LX SFP Modules |
| Switch ports |
*4 x RJ45 copper ports or *3 x RJ45 and 1 x SFP or *2 x RJ45 and 2 x SFP |
Either 10BaseT /100BaseTX /1000BaseTX or 100Base-FX or 1000Base-LX SFP Modules * configuration depends on version ordered |
| Mini PCI-Express | For WLAN, GPRS, UMTS, etc. | Minicard Slot |
| Physical / Power | ||
| Chassis | Compact rugged chromated Aluminum with stainless steel plates no ventilation holes | |
| Size & Weight | 62.1 x 162.1 x 118mm | 0.94kg / 2lb including housing |
| Power | 8 - 36VDC | Power consumption < 9 W, reverse polarity protection |
| Environment | ||
| Temperature Range | -20°C to +60°C optionally -40°C to +85°C | No fan, no openings, values at full CPU load |
| Humidity | 5% - 95% non-condensing | Optional coating available |
| Standard Compliance | ||
| The GUARD-FS is designed to meet or exceed the most common standards. Particular references are: | ||
| EMC | EN 55022, EN 55024, EN 61000, MIL-STD-461E | |
| Shock & Vibration | EN 60068 | |
| Environmental & Safety | EN 50155, MIL-STD-810-F, EN 60601, EN 60950 | |
| Software | |||
|---|---|---|---|
|
The GUARD-FS comes preinstalled with an adapted version of OpenWRT ( www.openwrt.org). This Linux based embedded distribution provides all functionality required for operation as IPV4 and/or IPV6 firewall and router. The vast amount of additional packages available in conjunction with MPL support allows you to create a solution for every routing or firewall project. Most of the configuration of the firmware installed can be done using a web based interface. For more specialized requirements, a console based configuration utility is available. All configuration is stored on the device in a human friendly text format and can be modified using a text editor, too. Functions and protocols:
|
|||
